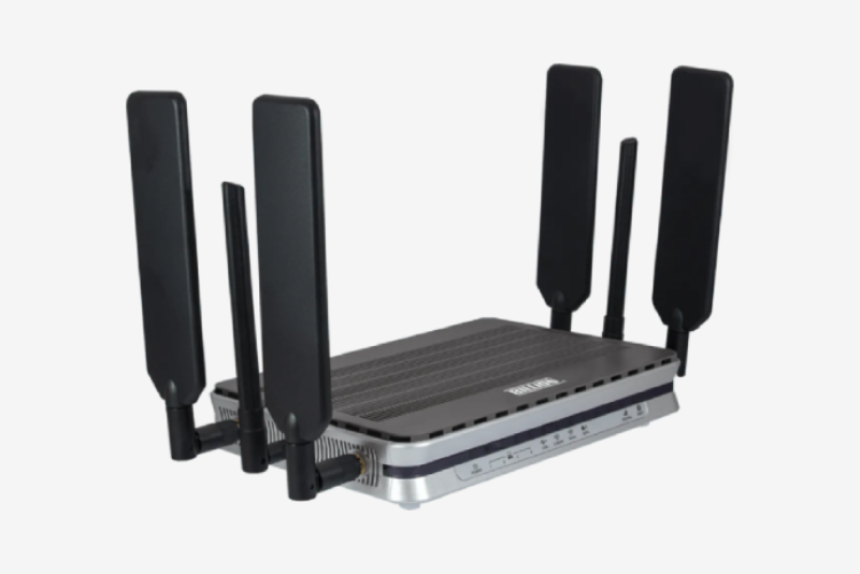

高性能

• 新一代5G NR(sub-6G)移動通訊模組*1
• Gigabit乙太網路埠
• 無線雙頻分享最高速率可達2.3Gbps

高實用性

• 支援多組5G NR(sub-6G)頻帶*1
• 雙端口設計- 5G NR移動通訊和廣域Gigabit乙太埠
• 無線雙頻- 2.4GHz 和 5GHz
• 多組虛擬SSID與無線客戶端隔離功能

虛擬私人網路 (VPN)

• 提供IPSec, OpenVPN, GRE, PPTP, L2TP等多項VPN協定

流量監控調配 (QoS)

• 流量限制與保證頻寬
• 支援IPv6

支援 IPv6

• IPv4, IPv6, IPv4/ IPv6 dual stack*2

CWMP（TR-069）

• 支援CWMP(TR-069)*2

USB 埠存取應用

• 內建SAMBA伺服端, FTP伺服端

內建5G NR(sub-6G)模組

• Frequency bands and data rate depend on equipping 5G NR (sub-6G) module *1

5G NR(sub-6G)移動通訊

• Dual SIMs/ Dual Modules
• Dual-WAN Interfaces (LTE, GbE WAN)

USB埠存取應用伺服器

• Storage/NAS: FTP server, SAMBA server

虛擬私人網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

防火牆

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack,Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

網路協議與功能

• Dual WAN Failover/ Failback
• ual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack *2
• Dual APN*2
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2,OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay
• Dual-WAN Interfaces (LTE, GbE WAN)

設備管理系統

• Password protection for system management
• Quick installation wizard
• Web-based GUI for remote and local management
• Firmware upgrades and configuration data upload and download via Web-based
• GUI
• TR-069 (CWMP)*2, SNMP
• 5G NR Usage Allowance
• Syslog monitoring
• Physical layer/protocol diagnostic test tool
• Scheduling Auto-Reboot

無線網路

• IEEE 802.11a/b/g/n/ac compliant
• Concurrent dual-band 802.11a/n/ac(5GHz) and 802.11b/g/n(2.4GHz)
• Up to 1733Mbps wireless operation rate at 5GHz
• Up to 600Mbps wireless operation rate at 2.4GHz
• 64/128 bits WEP supported for encryption
• Wireless security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK
• WPS (Wi-Fi Protected Setup) for easy setup
• Multiple wireless SSIDs
• Wireless MAC Filtering
• Wireless Client Isolation
• Supports WDS repeater function

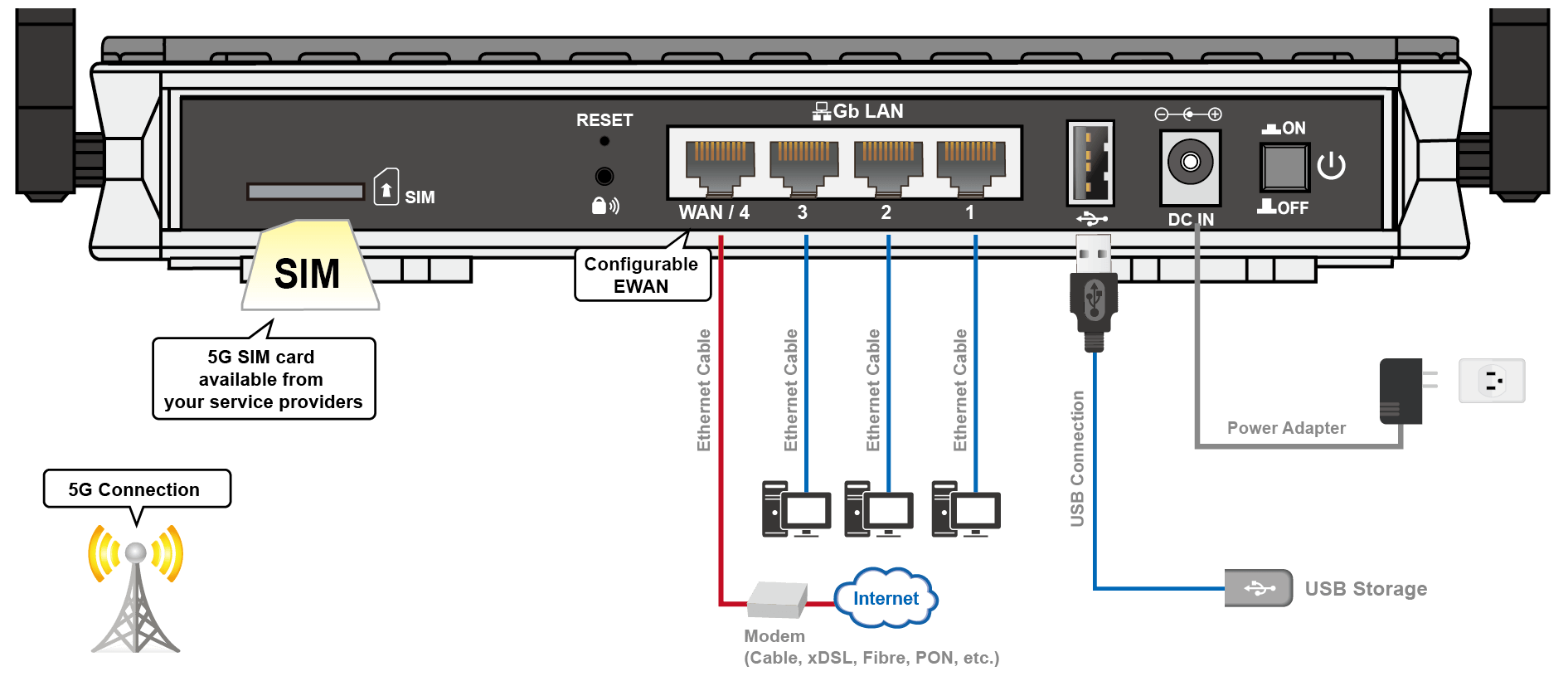

實體介面

• Four (4) detachable high performance 5G NR antennas
• Two (2) detachable 2.4GHz and 5GHz dual-band antennas
• Two (2) internal 2.4GHz and 5GHz dual-band antennas
• Four (4) Gigabit Ethernet auto-crossover (MDI/MDI-X) switch
• One (1) USB 2.0 host type A
• One (1) 2FF mini-SIM slot
• Factory default reset button
• Wireless on/off and WPS push button
• Power jack for DC input

高效能

• 新一代5G NR(sub-6G)移動通訊模組 *1
• 具備各項進階網路功能，可提供路由模式及IP Pass-Through模式

中央監控管理系統

• CWMP(TR-069)
• 雙端口設計- 5G NR移動通訊和廣域Gigabit乙太埠
• Billion CMS

優化的雙極化MIMO天線

• 滿足大頻寬與遠距離通訊需求

虛擬私人網路 (VPN)

• IPSec, OpenVPN, GRE, PPTP, L2TP

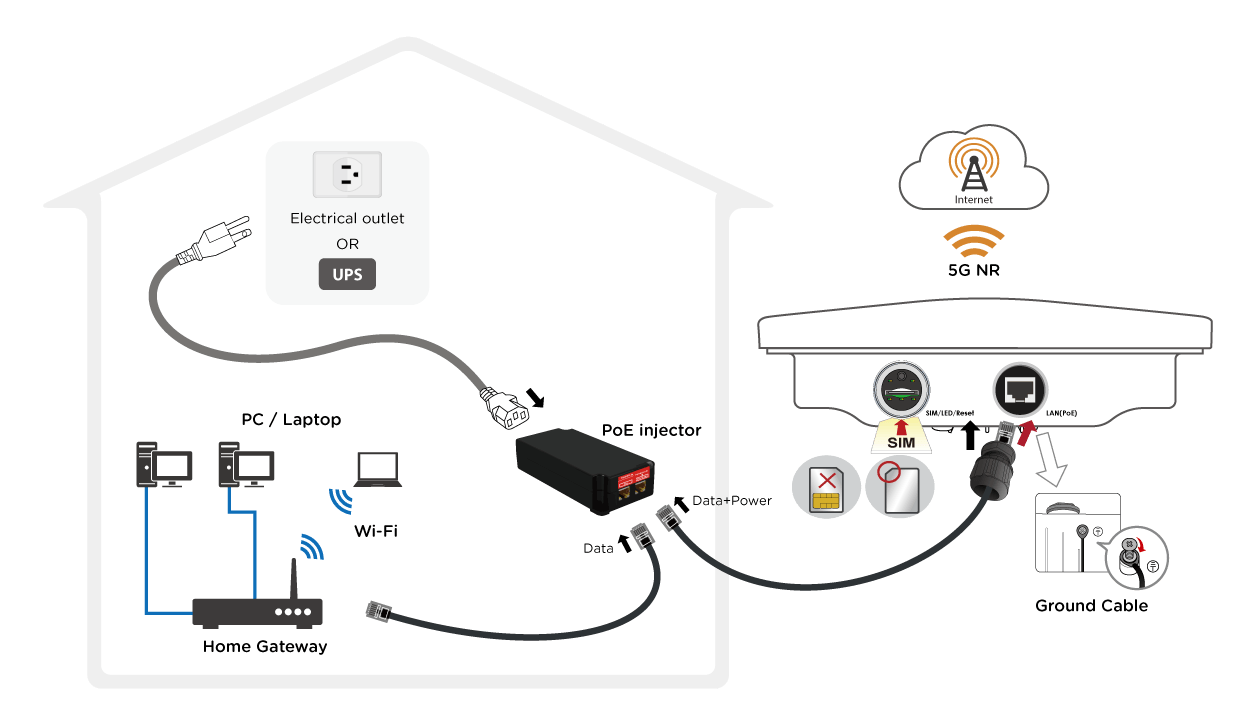

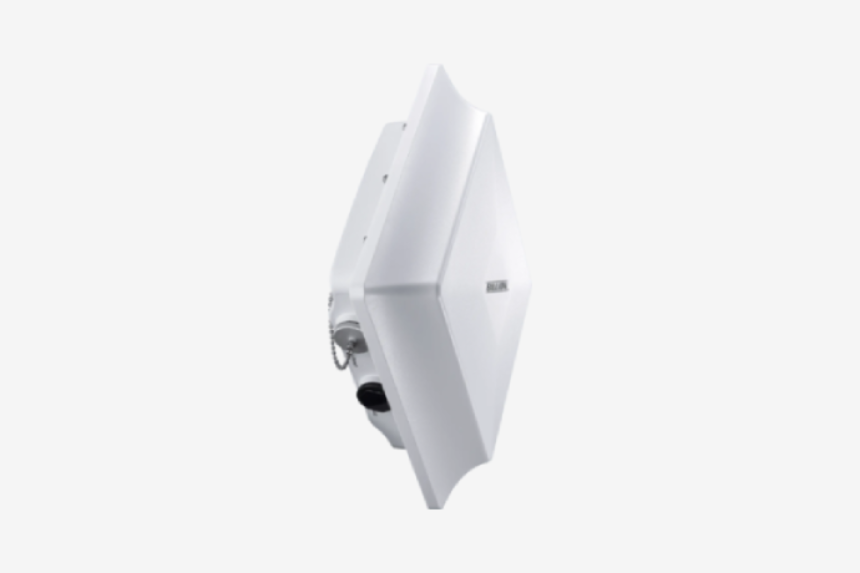

專為嚴苛環境設計

• 採用工業級元件搭配IP67等級外殼防水防塵外殼保護
• 靈巧強固的安裝套件設計不受架設環境限制
• 抗突波和靜電防護設計可有效預防雷擊或靜電突波

靈巧簡潔的設計

• 支援乙太網路供電(PoE)(Power over Ethernet)
• 單人即可輕鬆安裝

產品包裝含 PoE 供電器及安裝套件

5G NR (sub-6G)移動通訊

• Embedded high performance 5G NR(sub-6G) module*1
• Embedded dual-polarized MIMO antenna

內建5G NR(sub-6G)模組

• Frequency bands and data rare depend on equipped 5G NR(sub-6G) module*1

網路協議與功能

• IPv4, IPv6, IPv4/ IPv6 dual stack*2
• Dual APN*3
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP-1/2, OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug & Play (UPnP)
• Supports DHCP server/ client

防火牆

• Built-in NAT firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN pass-through

虛擬私人網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

設備管理系統

• Password protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via Web GUI
• TR-069(CWMP)*2, Billion CMS*2, SNMP
• 5G NR Usage Allowance
• Syslog monitoring
• Physical layer/protocol diagnostic test tool

全球導航衛星系統 (GNSS) *2

• Embedded multi-GNSS engine for GPS or GLONASS system

工作環境溫度

• Operating: -40°C to 60°C (-40°F to 140°F)

實體介面

• One(1) Gigabit Ethernet Interfaces with passive PoE PD
• One(1) Mini-SIM(2FF) slot (for the SIM from Telco/ISP)
• Reset Button
• LED Indicators: Power/Boot, LAN(PoE), Internet, Signal Strength, and GNSS *2

產品規格

• Dimensions: 257mm x 227 mm x 91mm (8.5" x 7.5" x 3.0")
• Weight: 1.81kg (4lbs)
• IP-67 grade enclosure

抗突波與靜電保護

• Surge Protection: K.21 common mode ±6KV
• ESD Protection: Contact: ±8KV / Air: ±15KV

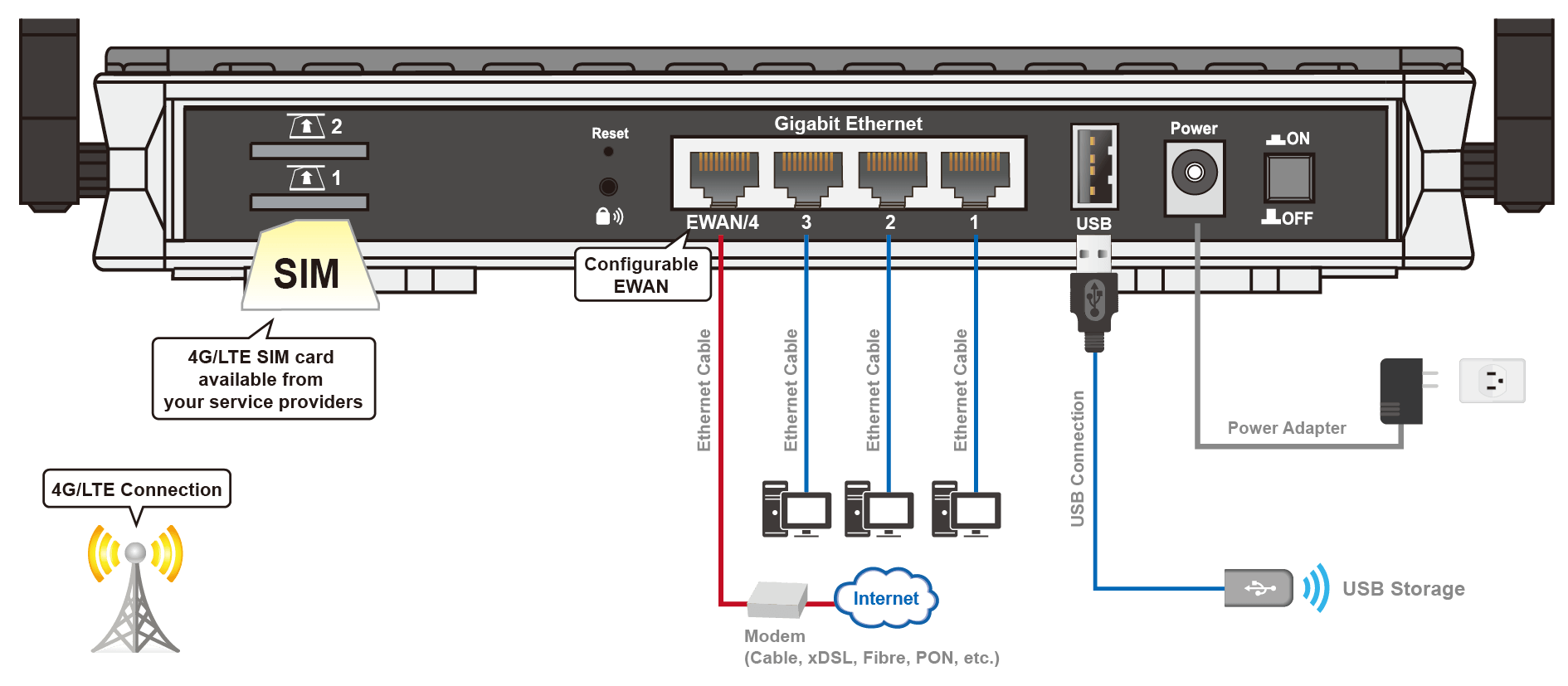

高性能

• 高速 4G / LTE 廣域寬頻網路連接*1
• 千兆乙太網路端口(Gigabit Ethernet)
• 無線雙頻 (2.4GHz & 5GHz) 最高無線傳輸速率 1.2Gbps

高效益

• 支持多組 4G / LTE 頻段*1
• 雙 WAN 介面 - 4G / LTE 與 GbE WAN

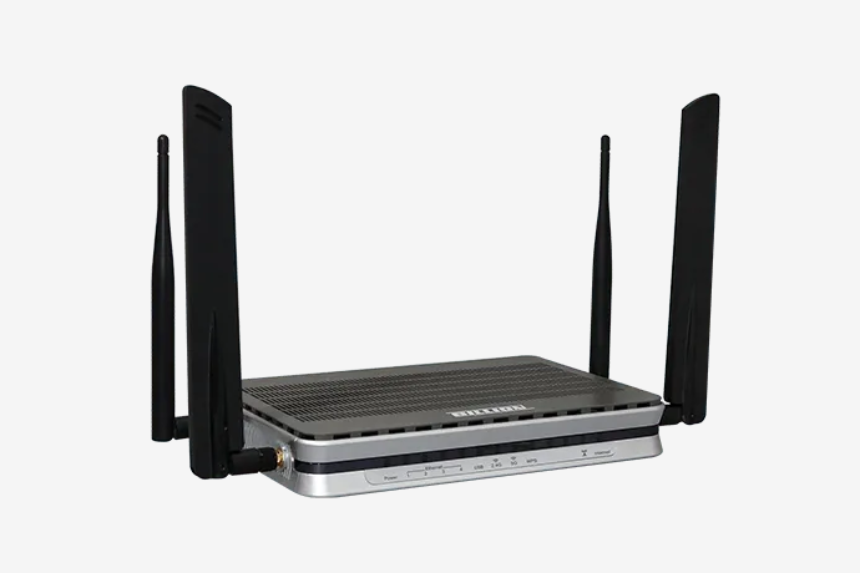

• 雙 SIM 卡/單射頻 (BiPAC 4520AZ)
• 單 SIM 卡/單射頻 (BiPAC 4500AZ)
• 無線雙頻 - 2.4GHz & 5GHz
• 多組虛擬 SSID 及 無線客戶端隔離功能

高效安全的 VPN 通道

• IPSec, OpenVPN, GRE, PPTP, L2TP

IPv6 Support

• IPv4, IPv6, IPv4/ IPv6 dual stack*2

USB Storage / NAS

• SAMBA server, FTP server

LTE Mobility

• 通過內建的LTE 模組可輕鬆的在任何地方連接上 Internet。

雙 SIM 卡

• 雙 SIM 卡設計提供網路連線故障轉移功能，能在主 SIM 卡失去連線時自動轉換至備援 SIM 卡，實 時保持網路連線。

LTE 和 Gigabit Ethernet WAN 之間的自動 故障轉移 (Failover) 與 故障回復 (Failback)

• 支援 LTE 和 Gigabit Ethernet WAN 介面，可在 LTE 和 Ethernet WAN 兩種介面之間完成故障轉移與故障回復，確保不中斷的網路連接。經由任意設定 LTE 或Gigabit Ethernet WAN 做為主要或備援 WAN 端口，當主 WAN 端口出現連線中斷時，系統將自動切換至備援 WAN 端口以確保實時連線。

兼顧移動性和安全性的無線雙頻

• 內建無線雙頻存取點，可同時運行於 2.4GHz 及 5GHz 頻帶，支援802.11n/ac，最大無線傳輸速率可達 1.2Gbps（5GHz 為 867Mbps，2.4GHz 為 300Mbps）。支援多重 SSID 設定，及客戶端隔離功能(Client Isolation)，可提高 Wireless LAN 上傳輸安全性和登入控制。網絡管理員可以為每個 SSID 分配不同的規則和功能，從而提高網絡基礎結構的靈活性和效率。

高效安全的 VPN 通道

• 支持多樣且強大的 VPN（虛擬專用網）通訊協議，包括 IPSec、OpenVPN、 GRE、PPTP、L2TP，使用者可以透過公共網際網路在總部和分支機構之間建立專有的加密數據傳輸通道。通過內建的 DES / 3DES 加解密加速器，大幅提升 IPSec VPN 的性能。

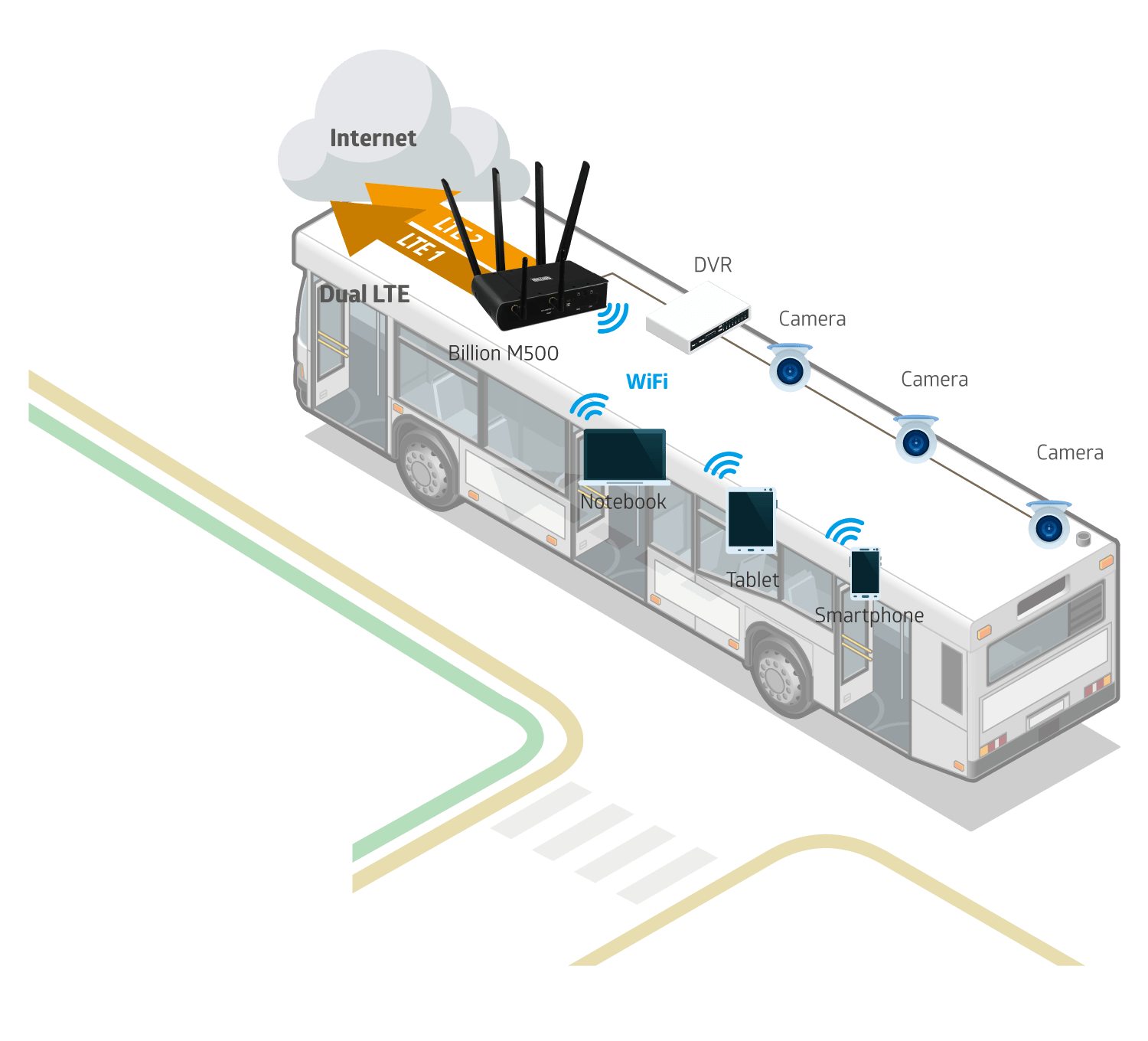

專為挑戰性/堅固的部署而設計

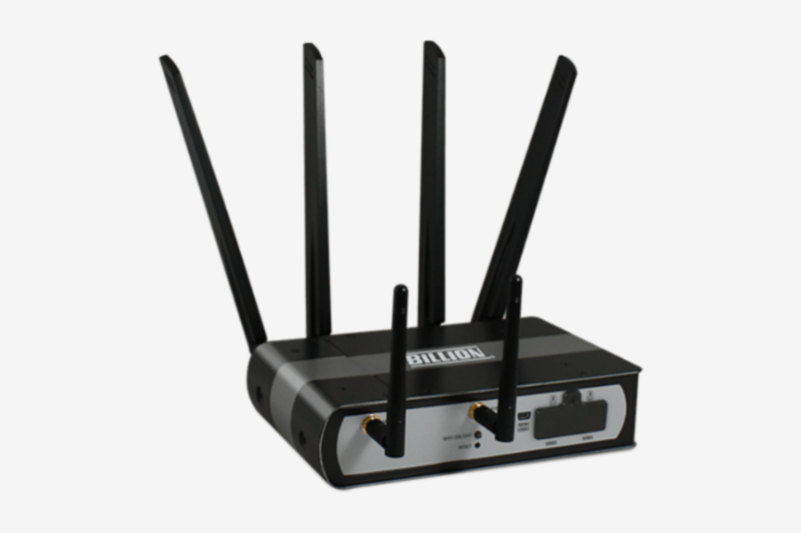

• Billion M500的金屬機殼，在穩固性的要求下提供最大彈性的拆換組裝可能性，並且通過MIL-STD-810G 514.6, 516.6 美國軍方標準測試。Billion M500的主動監控設備溫度機制能擴大系統可工作溫度(-40°~60°C)，M500也提供適應大範圍工作電壓(DC 10V~56V)的電路設計，足以滿足各種嚴苛的操作環境需求。

彈性的網路連線

• Billion M500的雙LTE模組的架構設計可依照不同方案需求提供「頻寬擴展性-負載平衡」或「可靠性連結-自動故障轉移與回復」，實時提供穩定可靠的連線品質。Billion M500同時內建GNSS功能，中控中心可據此追蹤遠端系統座標進而定位。

高性能、可靠性、易於管理

• 搭配Billion CMS更可於中控中心內即時監控M500系統本身運行狀況。Billion M500整體設計的優勢足以滿足彈性、靈活、可靠與穩定的嚴格要求，此外提供多種VPN連線通道保障通訊資料安全性，以及內建衛星導航系統（GNSS）可追蹤遠端系統定位，讓Billion M500足以勝任遠端監控系統的通訊任務，確保資料即時無誤的傳達至中央控制中心。

High-performance and reliability - easy to manage and access

• Offers LTE broadband connectivity (3G Fallback is optional)
• Multi-WAN interfaces: Dual SIMs/ Dual Modules and EWAN for network resilience and reliable connectivity
• Supports two SIM cards, and each SIM card is associated with one of the two LTE radios/modules
• Network expandability - load balance and reliable connectivity - auto-failover/failback
• Embedded GNSS option for real-time asset tracking and location data-based applications
• Local and Remote management via Web GUI, SNMP or CWMP(TR-069)

Secure VPN Connections

• Embedded IPSec, PPTP, L2TP, GRE and OpenVPN secure VPN connection with powerful encryption

Designed for challenging / rugged deployments

• Hardened enclosure with Industrial-graded components
• Designed to withstand heat, humidity and protect from shock, vibration, etc
• E-Mark (E1) certified

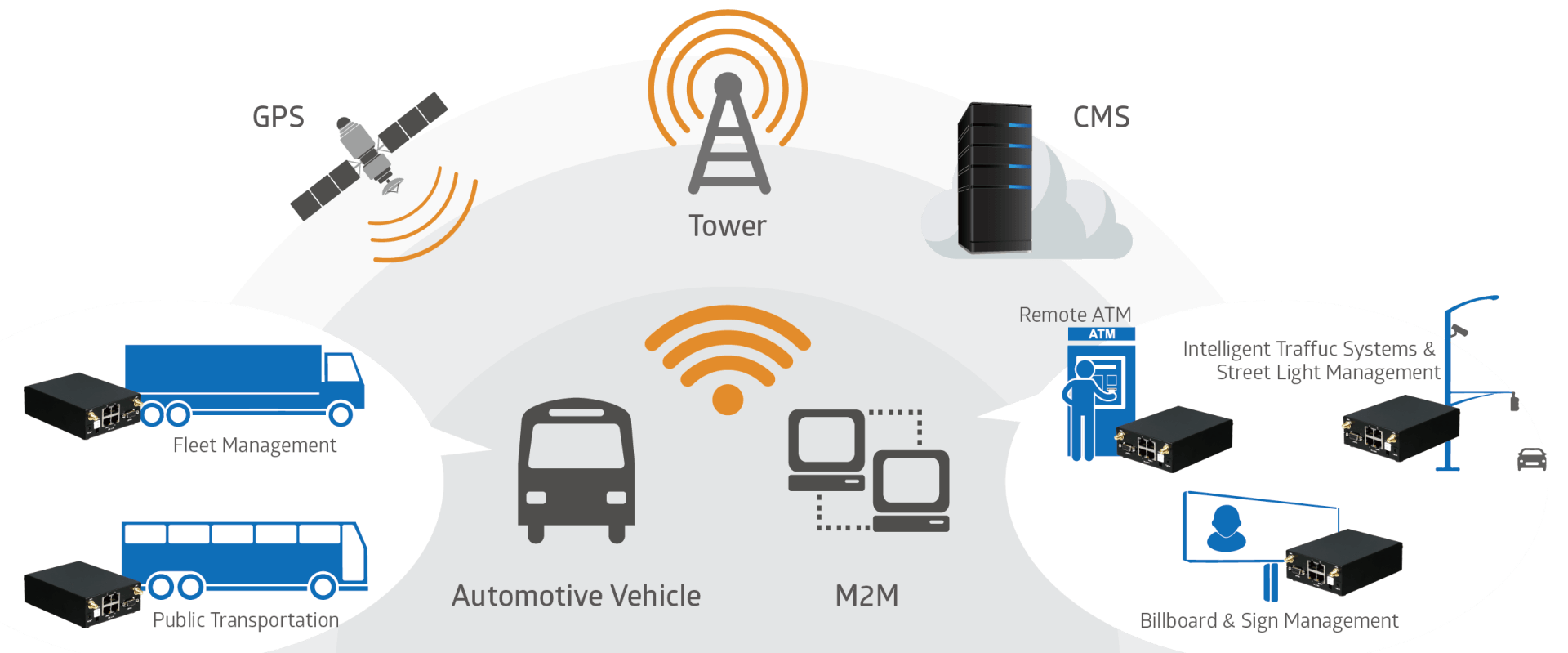

Ideal Solution for

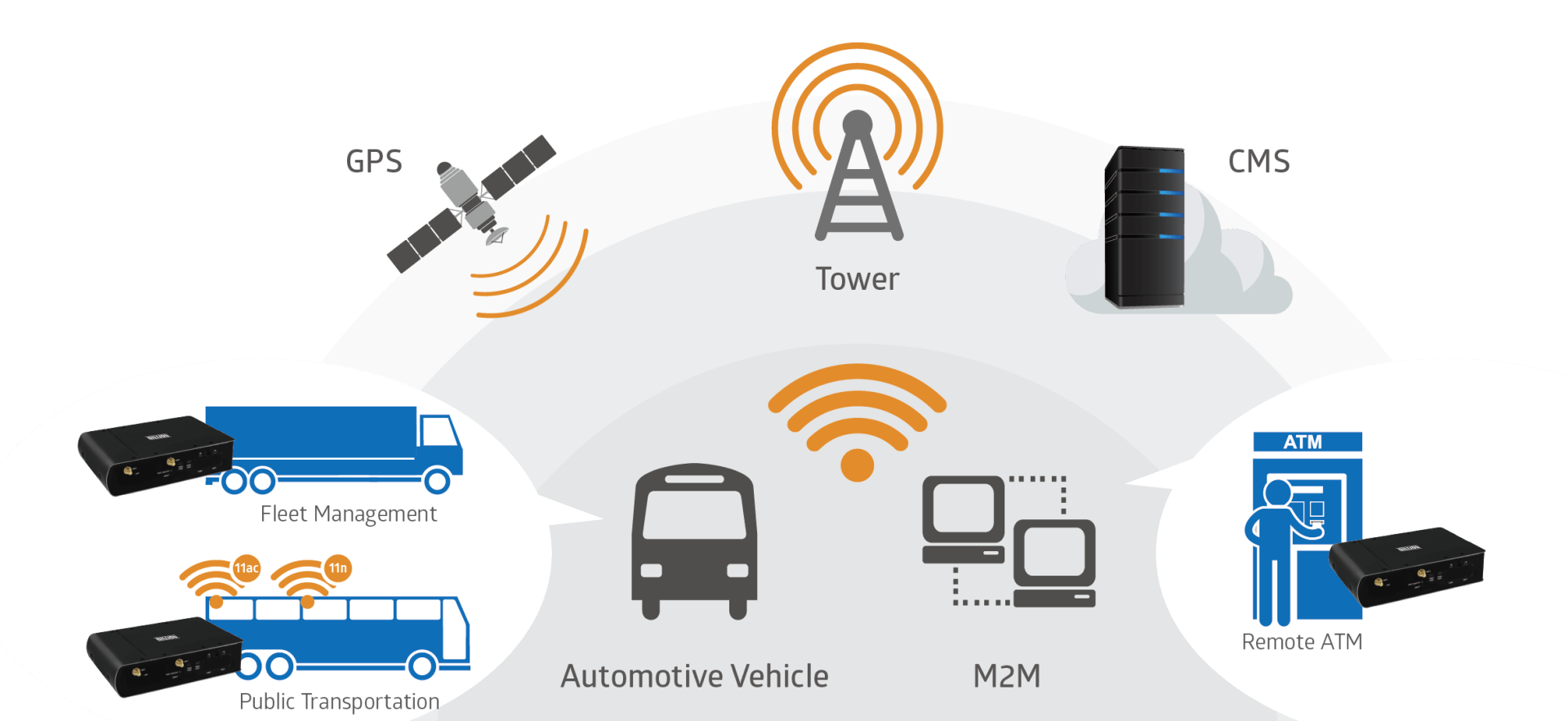

• Business Continuity, Logistics/Transportation and Fleet, Public Safety applications

Availability and Resilience

• Dual SIMs/ Dual Modules
• Dual-WAN Interfaces (LTE, GbE WAN)

Embedded 4G/LTE *1

• Embedded high performance 4G/LTE module
• Primary WAN LTE: FDD and TDD (Bands depend on module configuration)
• Secondary WAN LTE: Optional (Bands depend on module configuration)

Network Protocols and Features

• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack *2
• Dual APN*2
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2,OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay

Firewall

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack,Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

Virtual Private Network (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

Wireless LAN

• Compliant with IEEE 802.11n standard
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup
• 64/128 bits WEP supported for encryption
• Wireless security with WPA-PSK, WPA2-PSK,Mixed WPA/WAP2-PSK
• AP and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID
• Wireless MAC Filtering
• Wi-Fi Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Support RADIUS authentication
• Wi-Fi client rate-limiting

Physical layer/protocol diagnostic test tool

• WAN: 4G/LTE
  Optional :
  Single Module/SIM
  Dual Modules/SIMs
• Ethernet LAN: four(4) port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch
• USB 2.0 Host: two(2) ports
• Mini USB Console: two(2) ports
• Reset Button
• Wireless On/Off and WPS Push Button
• Power Connector: 4-pin connector with ignition sensing
• LED Indicators
• Antenna:
• 4G/LTE:
  four(4) detachable antennas(dual modules)
  two(2) detachable antennas(single module)
• GPS: one(1) detachable active antenna(option)
• Wireless: two(2) detachable antennas

Global Navigation Satellite System(GNSS) *3

• Embedded multi-GNSS engine for GPS or GLONASS system

USB Application Server

• Storage: FTP server and Samba server

Management

• Password protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI
• CWMP(TR-069) *2 , SNMP
• 3G/ 4G LTE Usage Allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool

Physical Specifications

• Dimensions: 7.25"(W) x 1.91"(H) x 5.31"(D)(184.25 mm x 48.5 mm x 135 mm)
• Weight: 1.07kg (2.36lbs)

Power Specifications

• Input: DC 10V~56V

Operating Requirements

• Operating: -40°C to 60°C (-40°F to 140°F)
• Humidity: 20 ~ 95% non-condensing

高可用性和網絡彈性

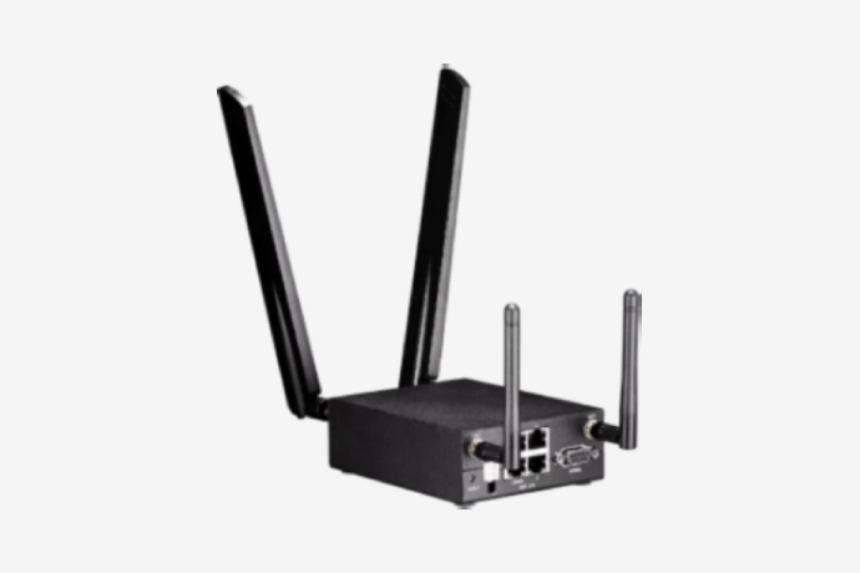

• M120N是功能強大的工業級路由器，提供強大的網絡處理能力和Multi-WAN連接性，專為實現網絡可靠性和不中斷連續通訊而設計。支持彈性的WAN連接，可以自動地轉換備援WAN介面，當主要的WAN介面失效，次要的WAN介面會自動備援連線，降低服務中斷的干擾。M120N也支援雙SIM卡應用，可實現無線通訊的相互備援。M120N具有四個Gigabit乙太網路端口，一個支援RS-232或RS-485的串行端口和802.11n AP，提供多樣本地介面滿足絕大多數的Smart Bus和M2M的應用需求。

專為工業環境與車載而設計

• M120N能在攝氏負40度至60度(華氏負40度至140度)的環境溫度下穩定工作，允許輸入的直流電壓範圍自10至56伏特，可用於各種環境和應用。此外，M120N 也適於裝置在各種大小的車輛，並配置了點火感應(Ignition Sensing)，可自動感應車輛引擎發動狀況，當車輛熄火後會自動關機，以防止汽車電池能源耗盡。為實現簡單、可靠和高效的目標，簡潔、輕巧的設計結合高度彈性的安裝選項，以確保M120N可以輕鬆地安裝在任何地方。

彈性的網路連線

• Dual SIMs
• Dual-WAN Interfaces (LTE, GbE WAN)

內嵌式 4G/LTE

• Embedded high performance 4G/LTE module
• Primary WAN LTE: FDD and TDD (Bands depend on module configuration)

無線網路

• Compliant with IEEE 802.11n standard
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup
• 64/128 bits WEP supported for encryption
• Wireless security with WPA, WPA2, WPA/WAP2
• AP and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID
• Wireless MAC Filtering
• Wireless Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Support RADIUS authentication
• Wireless Client rate-limiting

網路通訊協定與功能

• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack*2
• Dual APN*3
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2, OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay

防火牆

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

虛擬專用網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

串行序列埠(RS-232/RS-485)

• DB-9 female
• RS-232/ RS-485
• Modbus/TCP, Telnet Server, SSH Server, UDP Server/ Client, TCP Server/ Client從而提高網絡基礎結構的靈活性和效率。

全球導航衛星系統(GNSS)*4

• Embedded multi-GNSS engine for GPS or GLONASS system

系統管理

• Password protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI
• CWMP(TR-069)*2, SNMP
• 4G/LTE or 3G Usage Allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool

硬體規格/實體介面

• WAN: 4G/LTE (and/or GbE WAN)
• Ethernet LAN: four(4) port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch
• Serial Port(DB-9 female): one(1) port
• SIM Card: two(2) slots
• Reset Button
• Power Connector: 4-pin connector with ignition sensing
• LED Indicators
• Antenna: 4G/LTE: 2 detachable antennas
• GPS: 1 detachable active antenna (option)
• Wireless: 2 detachable antennas

堅固耐用工業級規格設計

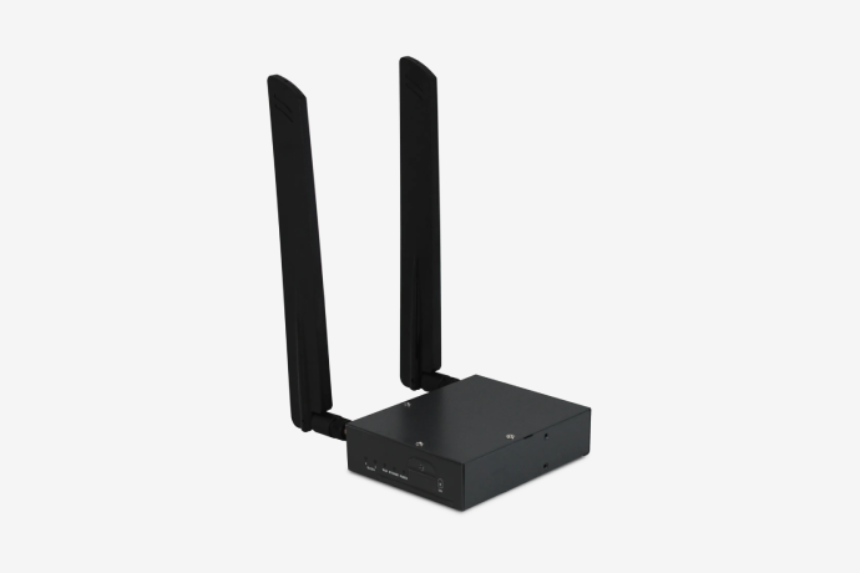

• Billion M150是專為嚴苛工業環境所設計的寬頻通訊設備。擁有堅固金屬外殼，可 在攝氏溫度 -20到60度(華氏-4到140度)的環境下運作，可接受的輸入直流 電壓為 9V至56V。輕巧和薄型設計提供高度靈活的安裝選項，適用於各種 環境與應用。以及多項企業級功能，例如：虛擬專用 網(VPN)、防火牆(Firewall)、自動故障轉移(Failover/Failback)、服務質量（QoS）等，提供安全可靠的網路通訊連接。

高可用性和網絡彈性

• Billion M150 內建 LTE WAN 口，提供兩個 Gigabit 乙太網路埠和一個 RS-232/ RS-485 串行接口，可提供 LTE 無線數據連接。智能軟件支持 可配置的 Gigabit LAN/WAN 選項以及多項企業級功能，例如：虛擬專用 網(VPN)，防火牆(Firewall)，自動故障轉移(Failover/Failback)等，提供無 與倫比的安全穩固運行力。

彈性的網路連線

• Dual-WAN Interfaces (4G LTE, GbE WAN)

內嵌式 4G/LTE *1

• Embedded high performance 4G/LTE modulev
• Primary 4G/LTE WAN: FDD and/or TDD

硬體規格/實體介面

• WAN: LTE (and/or GbE WAN option)
• Ethernet LAN: 2-port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch
• SIM Card: one(1) slot
• Reset Button
• Power Connector: 2-pin connector
• LED Indicators
• Antenna:
• LTE: one(1) detachable antennas
• GPS*4: one(1) detachable antenna(option)

網路通訊協定與功能

• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack*2
• Dual APN*3
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2, OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/client/relay

防火牆

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through

虛擬專用網路 (VPN)

• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN

串行序列埠(RS-232/RS-485)

• DB-9 female
• Modbus/TCP, Telnet Server, SSH Server, UDP Server/ Client, TCP Server/ Client

全球導航衛星系統(GNSS)*4

• GPS system

系統管理

• DPassword protection for system management
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI
• TR-069 (CWMP)*2, SNMP
• 3G/4G LTE Usage Allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool
